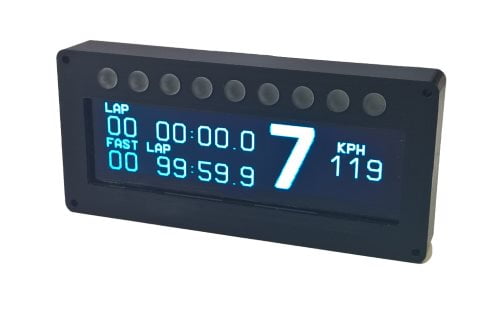

LDS3R
Compact OLED driver display
The LDS3R takes GEMS display technology and provides a highly capable and configurable display in an ultra compact form factor.

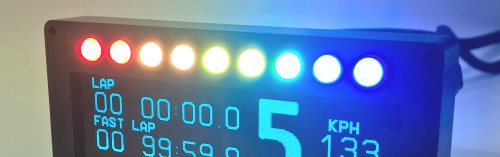

Using 9 high brightness tri-colour LEDs and a single colour OLED display panel, the LDS3R gives maximum clarity for open-top racing, motorbikes, or steering wheel installations.
Features
- Blue OLED display panel
- 8 customizable display pages
- Beacon input for lap timing
- 9 configurable tri-colour LEDs
- Internal 6-axis G sensor
- Viewable in direct sunlight
Specifications
- 256 x 64 pixel blue OLED panel (71 x 19 mm visible area)
- 8 analogue inputs, 2 speed inputs
- CAN 2.0, serial RS232 receive
- Sealed binder connectors
- Size: 91 x 42 x 22 mm
- Weight: < 100 grams
