Evo 4 PCB (LAN7 V.2.41) > PC connect

Post by 3kg » Wed Mar 11, 2015 9:17 pm

How to make connection for mapping/PC COMM?
Dongel is there and operating.
Can't find any instructions nor schematics.
PCB has round 5.5mm 3-pole plug soldered to pinout.
Please help.
Thanks
Kris
Only Mitsi Evos 6 to 9

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 542
Joined: Thu May 17, 2007 11:38 am

Re: Evo 4 PCB (LAN7 V.2.41) > PC connect

Post by RickS » Thu Mar 12, 2015 9:01 am

Hi Kris.
I have attached a small document going through the details of how to connect, what coms cables to use, how to allocate an appropriate COM or USB port, baud rates etc. etc.

If you need a manual for the 2.41 firmware, drop me an eMail to tech (dot) support (at) gems.co.uk and I will send one over.

Best regards,
RickS
Attachments
Connecting the ECU to PC.doc
What it says on the tin...
(241 KiB) Downloaded 433 times

3kg
New User
Posts: 3
Joined: Sat Feb 28, 2015 11:47 am

Re: Evo 4 PCB (LAN7 V.2.41) > PC connect

Post by 3kg » Thu Mar 12, 2015 12:56 pm

Hi Rick,
thanks for a swift answer.
I need to make the cable. As said 3-pole OD 5.5mm plug comes from PCB. So I need to start with the hardware firstly.
What type plug is that on your PCB, what pin layout?
I need to connect via USB, do you have schematics for a cable like that?
Once hardware is figured, I'm confident now I will get COMM done.

Thanks for your effort
Cheers
Only Mitsi Evos 6 to 9

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 542
Joined: Thu May 17, 2007 11:38 am

Re: Evo 4 PCB (LAN7 V.2.41) > PC connect

Post by RickS » Thu Mar 12, 2015 1:44 pm

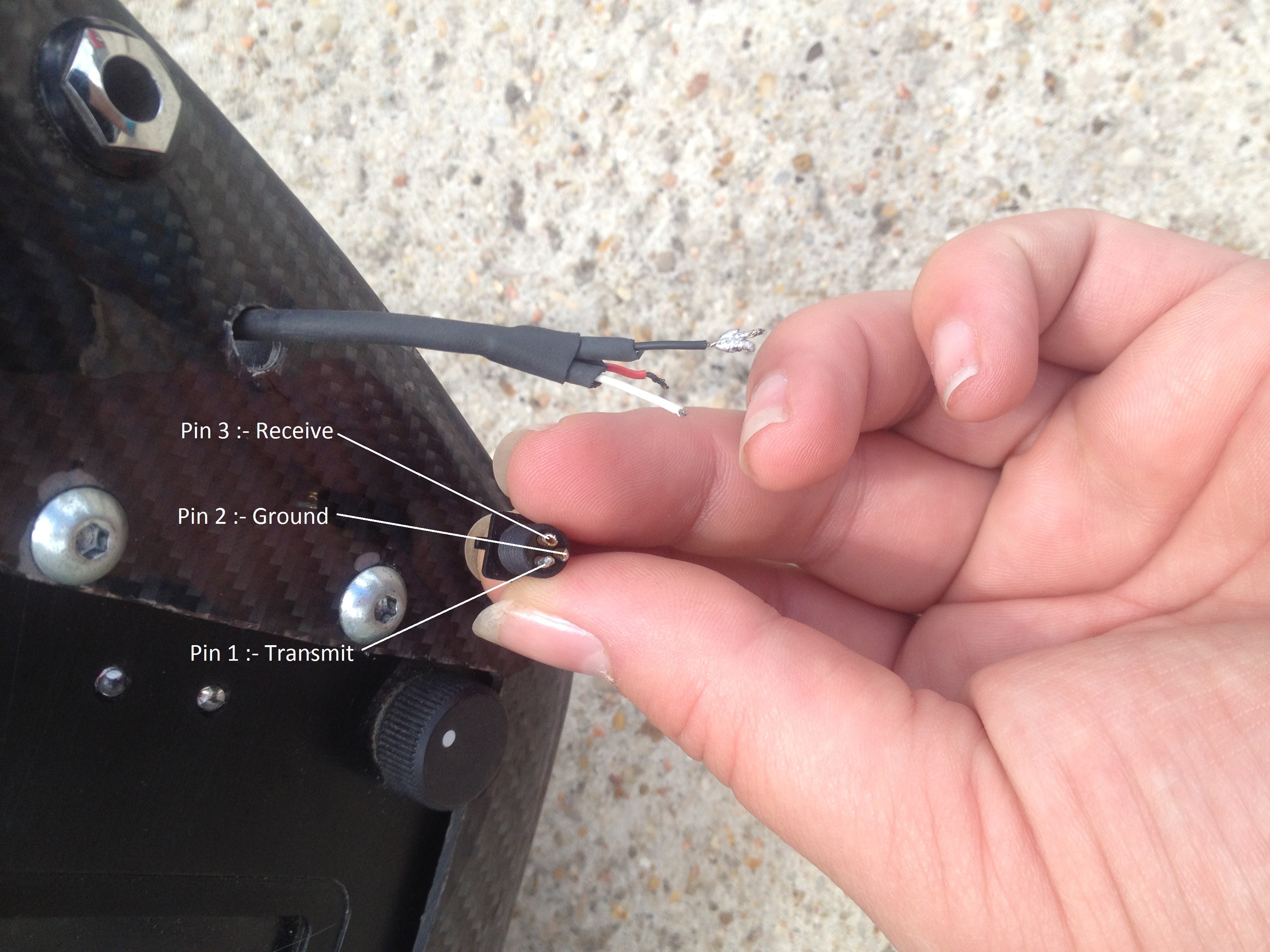

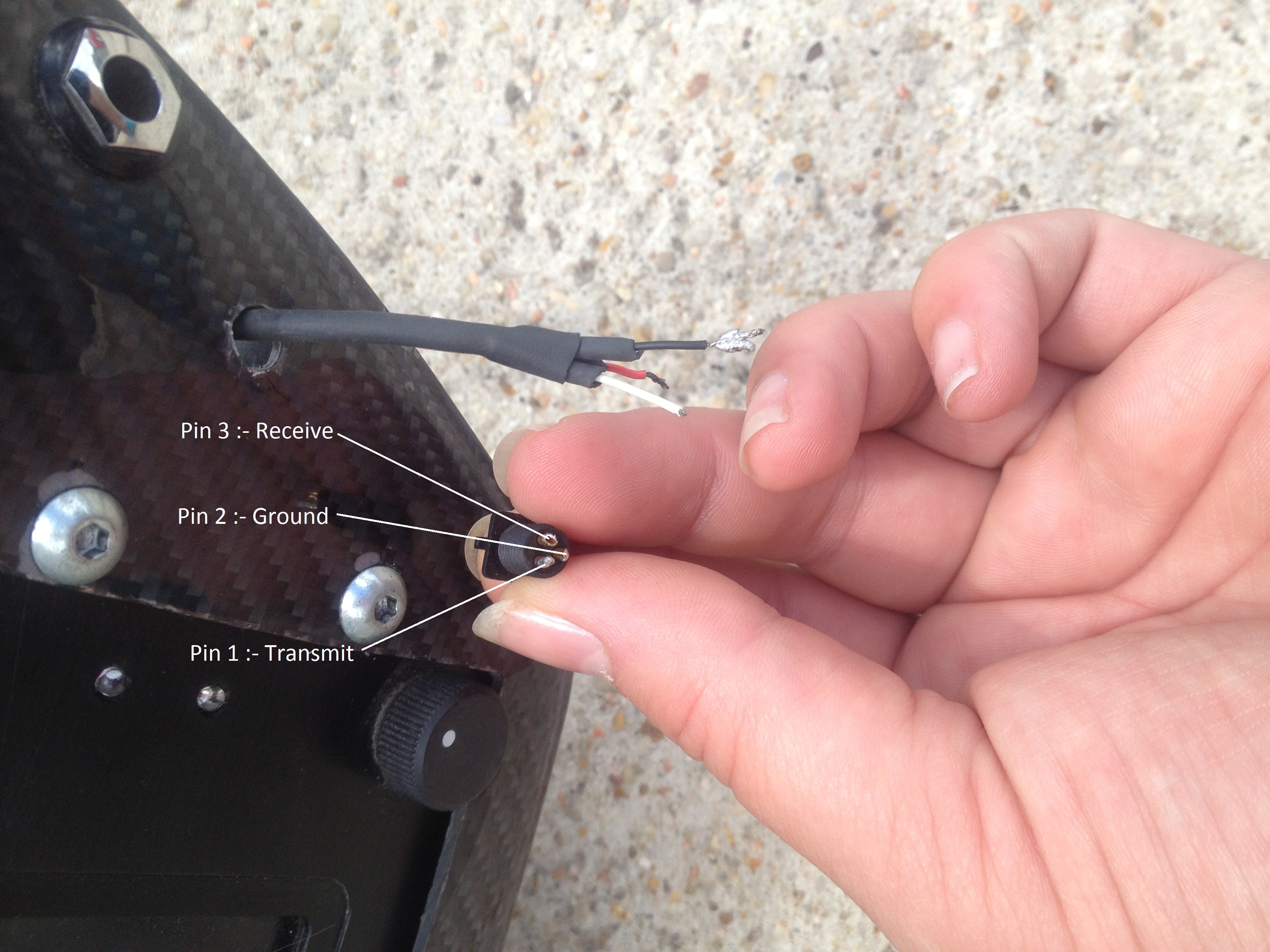

It' a '3 pin binder' connection that carries serial data, the connections of which are in the attached graphic. THe ground goes to the middle pin and the TX/RX are pins 1 and 3. If wired incorrectly (no data transmission), just swap them over.

If you are connecting the serial output from the ECU to a USB port on your computer/laptop, you will need a serial to USB converter, such as an ATEN or FTDI.

RickS
Attachments
3Pin Binder Layout.jpg
3 pin binder picture
(1.88 MiB) Not downloaded yet

3kg
New User
Posts: 3
Joined: Sat Feb 28, 2015 11:47 am

Re: Evo 4 PCB (LAN7 V.2.41) > PC connect

Post by 3kg » Thu Mar 12, 2015 8:51 pm

Makes sense. Thanks for effort!
Will get to work then.
