G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Sun Mar 10, 2013 12:18 am

Hi G.E.M.S.

I am very sad.
I have a Tatra T700 with GEMS ECU.
Last year ECU ceased to manage idle bypass valve.
I found a faulty IO - TPIC2404KN. IO I bought and traded.
My car is already "historically", ECU contains MC64HC11G5FN1, its replacement requires programmed ROM memory.
Please give me the binary contents of ROM memory for programming and exchange?
Do you have documentation in the archives of the ecu? You can provide, diagram, description?
The automaker Tatar, passenger car manufactured and dissociates itself from them.

Very very good thank you for every information.

Havrla
Attachments

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 541
Joined: Thu May 17, 2007 11:38 am

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by RickS » Mon Mar 11, 2013 8:42 am

Hi Havrla,
I will check our archives and get back to you as soon as I can. I suspect that this unit will have to come back to us but I will let you know.
Best regards,
RickS

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Mon Mar 11, 2013 10:40 am

1000 x Thank you very much.

I have the equipment to repair such units. I have an offer on IO, but no binary filled .... :-(

Havrla

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Mon Mar 11, 2013 11:23 am

Or if GEMS has know-how in a binary file, I can send the programmed IO and lock ROM.

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Mon Mar 11, 2013 1:34 pm

ROM coming from producers, thus becomes Programming GEMS, Question What version of the processor it is.
H11 version contains only the ROM and RAM memory.
Needless probably programmed. HC11?

External EEPROM contains everything you need? Program? MAPS has to know.

Havrla

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 541
Joined: Thu May 17, 2007 11:38 am

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by RickS » Mon Mar 11, 2013 4:15 pm

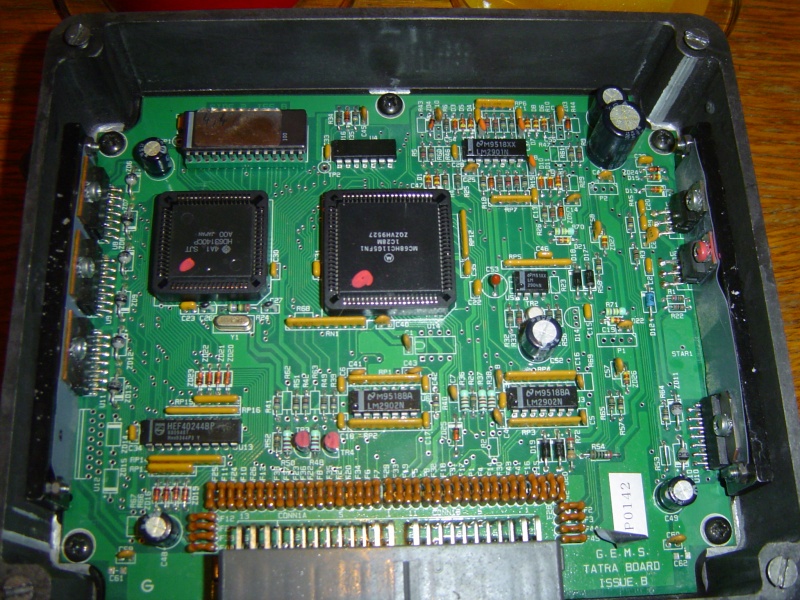

If you can read it, the version number will be written in the label on the EPROM. From the photo it looks like it starts 4,4 but it is hard to read. This is where the calibration will be held, not the big square Motorola processor MC68HC11G5FN-1.

My initial search did not reveal anything but I will continue to look and ask. I will keep you informed of any progress.
Best regards,
RickS

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Wed Mar 13, 2013 2:49 pm

Hello

Thank you.
Please I will be grateful for any technical information ECU (description, schematic, diagram).

Thank you very much.

Zdenek

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 541
Joined: Thu May 17, 2007 11:38 am

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by RickS » Thu Mar 14, 2013 2:24 pm

As mentioned above, the calibration is held in the EPROM not the CPU. This EPROM can be copied but the calibration within cannot be altered. Should you wish for the ECU to be serviced, it can of course be returned to GEMS.

Best regards,
RickS

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Fri Mar 15, 2013 1:56 pm

Thank you very much.

EPROM can read and change the maps that are in the EPROM. Original maps quantities of gasoline and early spark not optimal.
Cold engine has a very slow response to the addition of performance, and low performance.
Warm engine is idling bad move - the load. Also, slow response, but no longer acceptable.
I can do a lot, but without documentation it is difficult.

Thank you.
If that would have been another prolémy, ECU will send to you.

Havrla

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 541
Joined: Thu May 17, 2007 11:38 am

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by RickS » Fri Mar 15, 2013 5:34 pm

I will have to issue you with a Returns Number if you want to return the unit to us. Please PM me, or use tech.support (at) gems.co.uk to send your details (Name, Address etc.) and I will set you up in our database. You will need to do this before you send anything back other wise it may not be accepted.

Best regards,
RickS

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Mon Mar 02, 2020 10:46 am

Heloo RickS

I have good news after some time.
I managed to get all the spare parts for this historic GEMS. I discovered RaspberryPi and made an ECU test fixture.
I've repaired more than 10 pieces for Tatra people.

https://cloud.itnaklic.cz/itnaklic/inde ... Zs8DwXGza9

So it's just a nice day.

Havrla

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 541
Joined: Thu May 17, 2007 11:38 am

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by RickS » Mon Mar 02, 2020 10:53 am

Excellent news...! Well done...
It we get any more Tatra ECU queries, I now know who I can send them to..!!

Best regards, RickS

Havrla
New User
Posts: 8
Joined: Sat Mar 09, 2013 11:43 pm

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by Havrla » Tue May 05, 2020 10:36 am

Heloo RickS
No problem :-)
Thank you
Have a nice day and most of all good health.

User avatar
RickS
GEMS Engineer
GEMS Engineer
Posts: 541
Joined: Thu May 17, 2007 11:38 am

Re: G.E.M.S. TATRA BOARD ISSUE.B

Post by RickS » Tue May 05, 2020 10:39 am

You stay safe too Havrla..!
