Resizing Petrol Injectors

Post by RickS » Mon Feb 17, 2020 12:14 pm

You can change the size of your injectors by using GWv4...

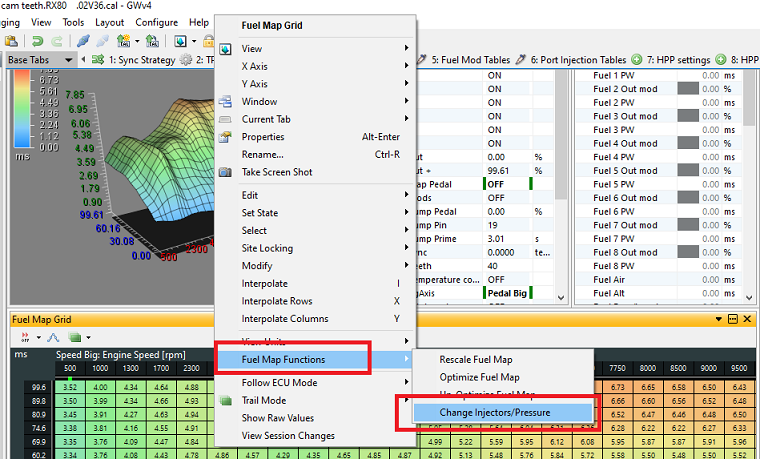

If you open the [Fuel] grid or graph and "right click" on it, you will see the following panel.
Now "left click" on the "Fuel Map Functions" option and select "Change Injectors/Pressure"
Resize injectors#1.png
Resize injectors#1.png (271.59 KiB) Viewed 1046 times
Next, you will now see a panel that allows you to select the current flow rate and input a new flow rate.
Resize injectors#2.png
Resize injectors#2.png (15.9 KiB) Viewed 1046 times
We would suggest that although this is an excellent "starting point", you should always get the motor re-mapped when changing injectors as if it is running too 'lean' you could seriously damage your motor.!!!!
